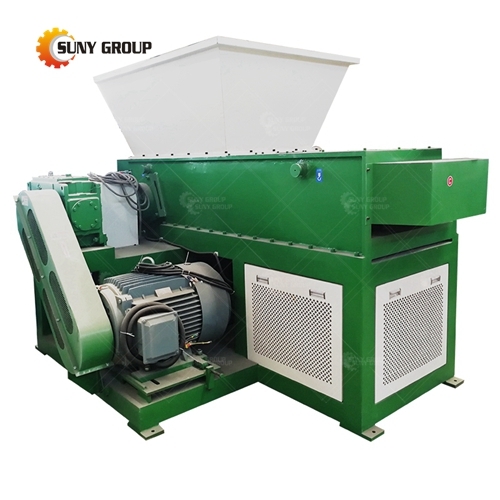

Factory Price Heavy Duty Waste Wire Plastic Shredder Machine

6500.00 - 65000.00 USD ($)

Request to Call Back Send Inquiry

Factory Price Heavy Duty Waste Wire Plastic Shredder Machine Price And Quantity

Delivery Time 10-15 Days
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa

Key Attributes:

Place of Origin	Henan, China
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	Gearbox, Motor
Warranty	1 Year
Power (kW)	38
Weight (KG)	3000
Key Selling Points	Multifunctional
Applicable Industries	Manufacturing Plant, single shaft shredder
Showroom Location	Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia
Brand Name	SUNY
Material / Metal Processed	Stainless steel, Brass / Copper, ALLOY, Carbon steel, Aluminum
Type	ZYDZS-800
Capacity	500-1000Kg/h
Energy supply	AC/3A/50HZ, 380 V or customerized
Raw material	Scrap PCB;TV, Cellphone, Computer Board and other print circuit board
Final Materials Size	about 4-8cm
Machine Power	45Kw
Certification	CE ISO
Machine Weight	3.5ton
Blade Materials	As per your demands
Packaging and delivery
Packaging Details	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Port	We default port is Qingdao, and other Chinese ports is ok
Supply Ability
Supply Ability	20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Technical Parameters:

Advantage:

The main shaft is driven by gear reducer, running smoothly, with low noise and large torque.
The material of the knife: Cr12MoV (Japanese brand SKD-11, American brand D2); the moving knife uses the "y" or "one" word installation way to make the knife cut evenly. reduce energy consumption and reduce noise in the whole work; each knife has 4 cutting edges, and then rotates 90 degrees after wear; each set has 2 cutting edges. After wearing, it can be rotated for 180 degrees to continue to use: the blade on the rotor can be disassembled for easy cleaning, maintenance.
We can supply different rollers according to different material. Choosing the right rollers can improve machine performance and production efficiency. We can supply the following three rollers: High performance roller, hard material roller and film roller.
We have designed three different knives holders according to the material, such as welded knife holders, assembled knife holders and CNC cutting knife holders.

Main Structures:

Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet control panel, screen, roller, knives holder, etc.
After shreddering, the dimension of most large plastic or other material will reduce 30%, some material dimenison after shreddering can up to 50%.
(We have arranged many videos. Please contact us freely if you need.)
